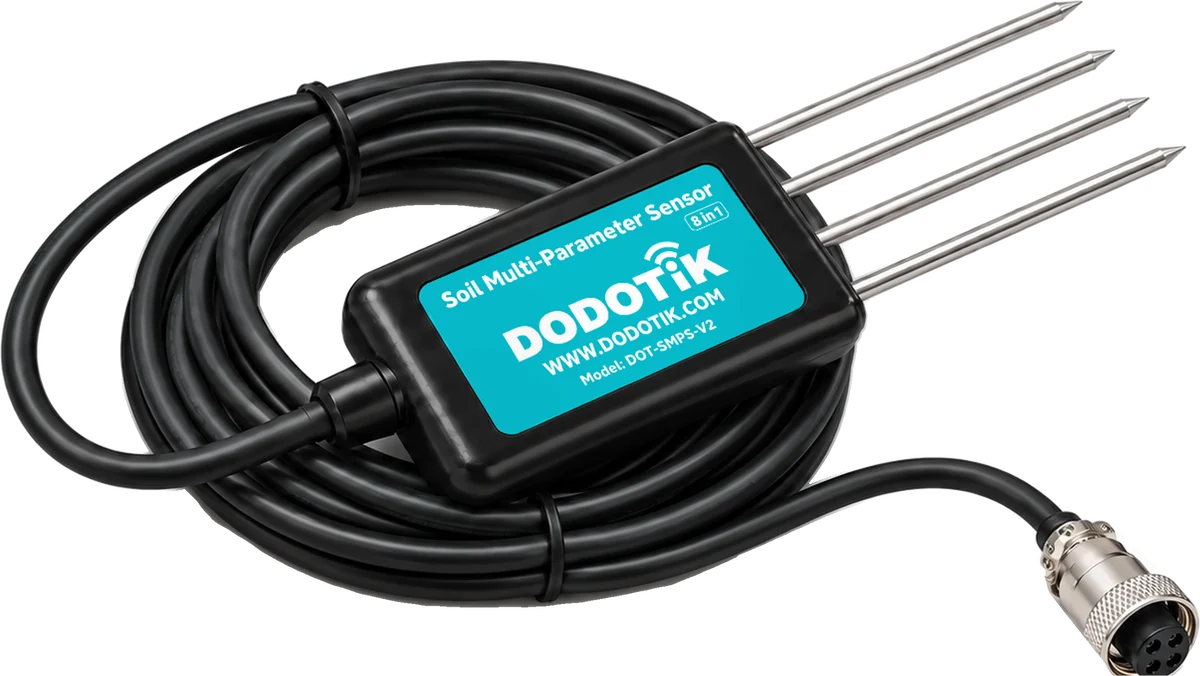

DODO SOIL — 8-in-1 Soil Sensors
Moisture, temperature, EC, pH, nitrogen, phosphorus, potassium and salinity from one buried RS-485 Modbus probe. IP68, 316L needles, plug-in for DODO LOGGER.
About the family
DODO SOIL puts eight agronomic parameters on one buried probe and one Modbus address: moisture, temperature, EC, pH, nitrogen, phosphorus, potassium and salinity, read from eight consecutive registers in a single transaction.
A complete picture of a plot therefore costs one sensor slot rather than eight. The head is 316L stainless steel and the body is potted to IP68, so the unit is buried at root depth and left there season after season.
The range
Compare at a glance
| Order code | Sensor | Measures | Range | Accuracy |
|---|---|---|---|---|
| DS-8 | 8-in-1 Soil Multi-Parameter Sensor | Moisture · Temperature · EC · pH · N · P · K · Salinity | 0-100 % | ±2 % m³/m³ (over 0-50 %) |
Plug Any DODO SOIL sensor into DODO LOGGER and it is already on your phone
No firmware reflash, no driver to write, no backend deployment. The logger self-describes its schema to the platform, so a new sensor appears in the dashboard and in the app on its own.
1 · Plug in
The fitted GX12 4-pin connector screws onto the logger's Modbus RS-485 socket. No stripping, no terminal block, no tools. Up to four sensors per logger.
2 · Select it
Any DODO SOIL sensor is in the logger's no-code sensor library. Pick it in the web interface, assign a slot, and it starts logging.
3 · Logged locally
Every reading to microSD, always on, offline included. CSV download straight off the card.
4 · Live in the cloud
MQTT/TLS to the DODOTiK Platform — live dashboards, full history, alert thresholds, device management.
5 · On a phone
The same readings and alerts in DODOLINK for iOS and Android, for whoever is out in the field rather than at a desk.
Nothing here is lock-in. Any DODO SOIL sensor is a standard Modbus-RTU device on a standard RS-485 bus. The DODO LOGGER, the platform and the app are the fastest route from probe to dashboard, not the only one — the full register map is published below and in the datasheet, and the sensor can be ordered with bare leads for a PLC, DCS, SCADA or paperless recorder.
Request a quote
Tell us which order codes you need, the quantity and the destination country, and we will come back with export pricing, volume tiers and lead time. Distributor terms available.
